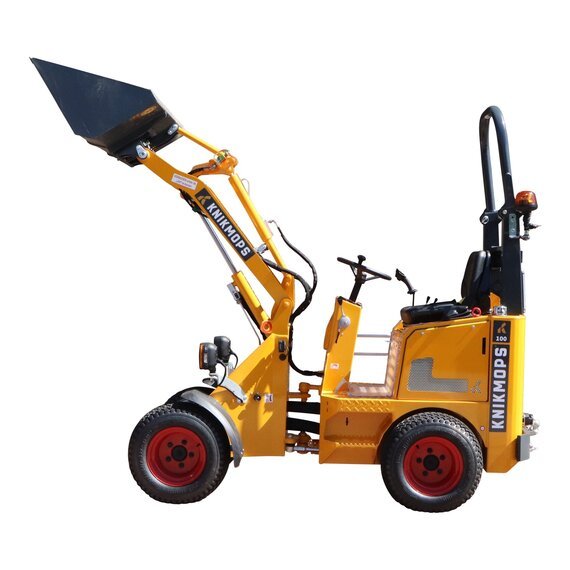

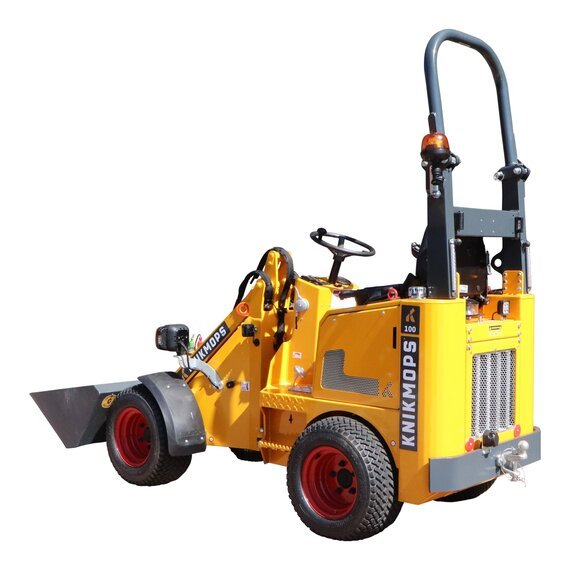

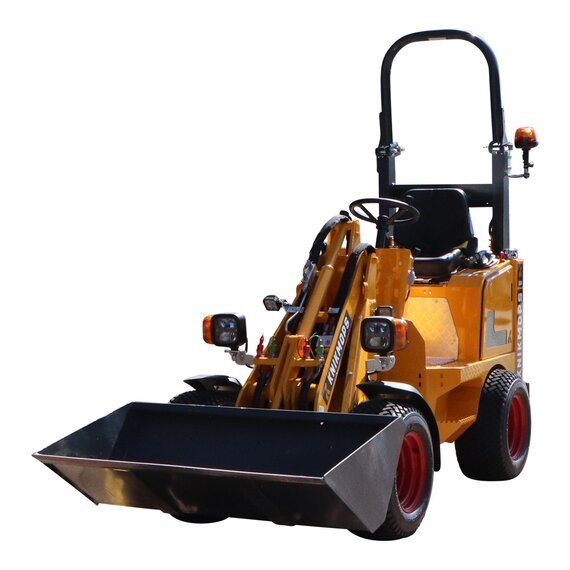

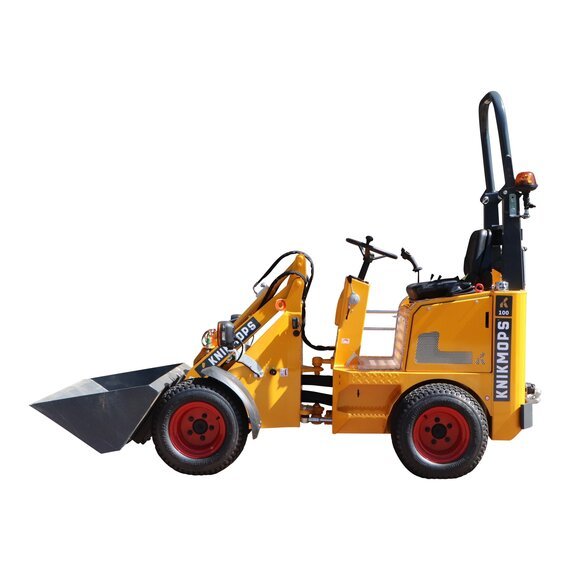

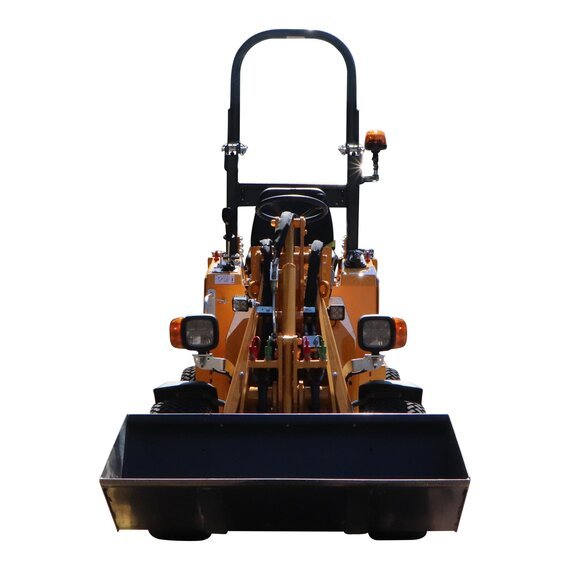

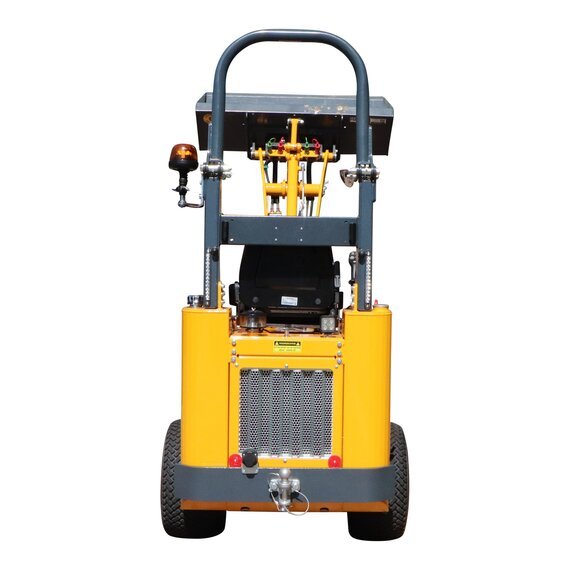

Knikmops 100 (KM100)

The Knikmops KM 100 is a compact, multi-deployable articulated loader developed by Gebroeders Geens.

Read more

Technical features

Download technical datasheet
Number of cylinders 3
Output of work hydraulics 33 L/min
Lifting force 910 kg
Lifting force (0.5m in front of the wheel) 730 kg
Power 25 HP / 18 kw
Kerbweight without attachment 1050 kg
Topspeed 18 km/h
Diesel engine type (Kubota) D1105
Fueltank capacity 33 L
Breakout force 640 kg
Pressure of work hydraulics 180 bar
Weight 1050 kg

Hefvermogen

1 2 3
910 kg 730 kg 490 kg
Gebroeders Geens kniklader Knikmops Gebroeders Geens kniklader Knikmops
Gebroeders Geens kniklader Knikmops
Gebroeders Geens kniklader Knikmops

Machine dimensies

A 1445 mm Wheelbase
B 2400 mm Chassis length
C 2940 mm Total length with shovel bucket
D 930/1180 mm Overall width
E 960/1250 mm Shovel bucket width (standard)
F 45 ° Maximum turning angle
G 2380 mm Turning radius outside edge
H 2225/2250 mm Rollbar height
I 1125 mm Seat height
J 245 mm Ground clearance
K 32 ° Tipping-in angle from ground surface
L 1165 mm Arm hinge height
M 1775 mm Transfer height
N 2030 mm Shovel bucket rotation point, maximum

Description

The Knikmops KM 100 itself weighs 1000 kg so that it can be easily transported on a trailer and its ground pressure is low. In addition, this articulated loader is able to lift 910 kg. Combined with a maximum width of 1.18 m, this makes the Knikmops KM 100 a very compact machine. With its robust steel chassis, this wheel loader is suited for demanding jobs. That makes this Knikmops an invaluable helper in housing construction, road construction, forestry…

In addition, a Knikmops operator can rely on a power of 19 kW or 25 hp when using this multifunctional articulated loader. In addition it has a continuous 4-wheel drive thanks to four separate hydromotors on the wheels. This drive is controllable with a difflock or can be - optionally - switched electrically. A perfect helper for work in small spaces with restricted passage.

The photos on the website do not show the standard configuration for the articulated loader. This means that the standard Knikmops KM 100 may deviate from the photos.

Extra options

Product option Knikmops-Road lighting
Road lighting

We offer you this option for safe driving on roads. The option comprises 2 headlights and tail lights with parking light, dipped headlight and turn lights.
KM 90/100/120/125/130/140: Art.no. 20137210
KM 180/250: Art.no. 20257210

Product option Knikmops-Work lighting
Work lighting

This option is ideal to enable work to continue even at dusk or at night. The option comprises 2 front and 1 rear working lights.

Product option Knikmops-Tyres
Tyres

We offer a range of different tyres so you can choose the perfect tyre for your work.

Counterweight

The counterweight gives you increased lifting force in front and greater stability when lifting heavy loads.

Product option Knikmops-Hydraulic fast attachment coupling
Hydraulic fast attachment coupling

This option enables you to rapidly replace your attachment without leaving your Knikmops.

Beacon

The revolving light is ideal for ensuring that you are easy to see in traffic or on site. It is mounted on the rear bracket.
KM 80/85/90/100/120/125/130/140: Art.no. 20097978
KM 80/85/90/100/120/125/130/140:/180/250: Art.no. 20098177

Flashing LEDs

Thanks to the flashing LEDs you are easier to see on site or in traffic. They are mounted on the rear bracket.

Product option Knikmops-Fixed stop
Fixed stop

With the steering stop you do not need to hold the lever of the additional hydraulic function all the time when mowing/brushing/…, but the lever is fixed to the same position.

Central lubrication

This option ensures that the pivot points of the arm are given automatic lubrication, which extends the lifespan of these components.
KM 180: Art.no. 20188202

ROPS-FOBS bar

This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system).

Folding ROPS-FOPS bar

This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system). This Rops-fops bracket can be folded in a few easy steps for driving through low passages.

Product option Knikmops-Click clamp
Click clamp

The click clamp is a clamp that you can fold so you can use your Knikmops even in places with a low passage.
RM 50: Art.no. 20058105
RM 70: Art.no. 20078021
KM 80/85: Art.no. 20088203
KM 90/100: Art.no. 20098165
KM 130: Art.no. 20138171
KM 180: Art.no. 20188015
KM 250: Art.no. 20258015

Extra hydr. cooler

This cooler provides additional cooling for activities that require a constant, large hydraulic flow. (mowing, milling, …)

Toolbox

With this toolbox you always have your tools at hand on your Knikmops.

Product option Knikmops-Mudguard extensions
Mudguard extensions

Thanks to these mudguard extensions your Knikmops will not get dirty as easily.

Licence plate support

A Knikmops is road-approved and can therefore be used on public roads. For this you do need
a licence plate. In order to attach it neatly to your Knikmops, we provide you with a licence plate support.

Product option Knikmops-Fast attachment coupling
Fast attachment coupling

If you want to have a different quick replacement system than the standard Knikmops connector system.

HyF control

With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible.

Floating boom

This option enables you to switch the lifting cylinder off so the arm can move freely. This enables
an attachment such as a leveller/milling cutter to follow the ground free from the machine.

Hydr. leak line

For hydraulically powered machines that require a large hydraulic flow, a bleed line may be required to achieve lower pressure and heating from the hydraulics.

Hydr. vacuum unit

This vacuum unit is hydraulically powered by the engine of the machine so an additional petrol engine is not needed.

Product option Knikmops-Custom or corporate colour
Custom or corporate colour

We offer you the option of having your Knikmops painted in your own corporate colour.

Hydraulic circuit coupling rear

For operating hydraulically powered devices that you can attach to the rear of your machine.
For instance a mini dumper, box scraper, …

Heating hydraulic tank + motor

This heating keeps the engine and hydraulics of the machine warm during the cold winter months. This allows for faster starting of the machine and smoother driving after starting. This option is recommended in places where the temperature is below -10°C. This option works on mains power.

Product option Knikmops-Joystick control
Joystick control

With the joystick control you can operate functions such as forward/backward and the horn of your Knikmops with the joystick you use to control the jib.

Comfort seat

This seat is more comfortable and has better suspension than the standard seat.

Electric locking differential

This function enables the lock to be activated or deactivated electrically (instead of manually).

Hydraulic boom suspension

This function makes it more enjoyable to drive the machine at higher speeds.

Product option Knikmops-Towbar
Towbar

The tow bar enables you to move trailers around on site.

Bucket positioning rod

This option makes it easy to place the attachment (shovel bucket/levelling frame) neatly level
to the ground time and time again.

HyE control

With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible. The Geco leveller can also be operated with this option.
