Knikmops 130 (KM130)
The Knikmops KM 130 is a compact, multi-deployable articulated loader developed by Gebroeders Geens. This machine is now the most produced Knikmops at Gebroeders Geens nv.Read more
Technical featuresDownload technical datasheet
|Number of cylinders||4|
|Output of work hydraulics||37 L/min|
|Lifting force||1260 kg|
|Lifting force (0.5m in front of the wheel)||970 kg|
|Power||25 HP / 18 kw|
|Kerbweight without attachment||1350 kg|
|Diesel engine type (Kubota)||V1505|
|Fueltank capacity||37 L|
|Pressure of work hydraulics||180 bar|
|Breakout force||950 kg|
|B||2710 mm||Chassis length|
|C||3390 mm||Total length with shovel bucket|
|D||950/1250 mm||Overall width|
|E||1000/1270 mm||Shovel bucket width (standard)|
|F||47 °||Maximum turning angle|
|G||2400 mm||Turning radius outside edge|
|H||2260 mm||Rollbar height|
|I||1270 mm||Seat height|
|J||315 mm||Ground clearance|
|K||30 °||Tipping-in angle from ground surface|
|L||1230 mm||Arm hinge height|
|M||1975 mm||Transfer height|
|N||2145 mm||Shovel bucket rotation point, maximum|
|1260 kg||970 kg||740 kg|

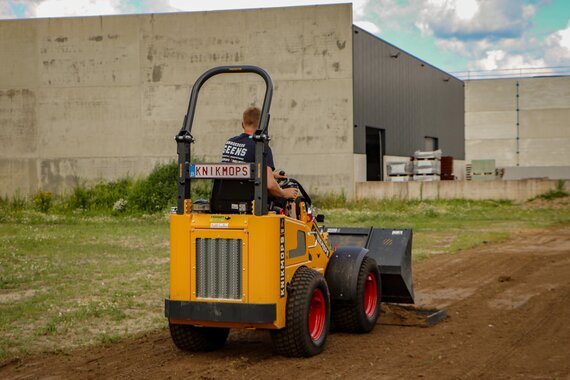

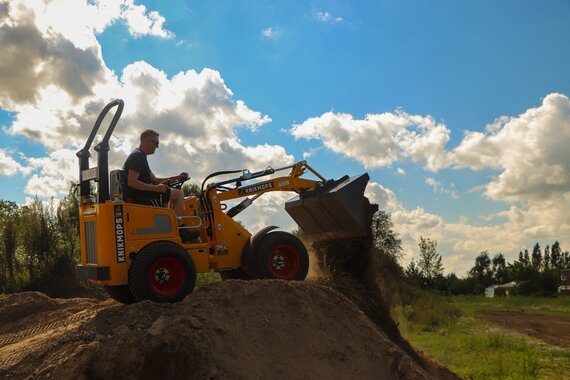

The Knikmops KM 130 weighs 1350 kg itself and is able to lift some 1260 kg. This articulated loader is around 1.25 m wide so it is easy to use in narrow spaces such as a park, garden or in demolition works. The compact steel chassis is robust and was developed for demanding jobs. The hydraulic function of the Knikmops makes it perfectly suited to carry out a variety of jobs in addition to earthworks, for example mowing, mixing stabilised sand, or drilling holes. In addition, a Knikmops operator can rely on a power of 19 kW or 25 hp when using this multifunctional articulated loader. In addition it has a continuous 4-wheel drive thanks to four separate hydromotors on the wheels. This drive is controllable with a difflock or can be - optionally - switched electrically. This Knikmops with easy steering is a perfect asset at a construction site or in a garden.
Accessoires bij deze Knikmops
We offer you this option for safe driving on roads. The option comprises 2 headlights and tail lights with parking light, dipped headlight and turn lights.
KM 90/100/120/125/130/140: Art.no. 20137210
KM 180/250: Art.no. 20257210
This option is ideal to enable work to continue even at dusk or at night. The option comprises 2 front and 1 rear working lights.
The cab is ideal for working in bad weather conditions. The cab is equipped with working lights, front and rear wipers (and possibly heating).
KM 130: Art.no. 20138200
KM 180: Art.no. 20188300
KM 250: Art.no. 20258200
We offer a range of different tyres so you can choose the perfect tyre for your work.
The ground weight gives your greater stability and traction during your work.
The hand throttle ensures a higher engine speed regardless of driving speed. This enables equipment to be driven that need greater hydraulic throughput at low driving speeds. Such as a mower, milling cutter, brush, …
Hydraulic fast attachment coupling
This option enables you to rapidly replace your attachment without leaving your Knikmops.
The revolving light is ideal for ensuring that you are easy to see in traffic or on site. It is mounted on the rear bracket.
KM 80/85/90/100/120/125/130/140: Art.no. 20097978
KM 80/85/90/100/120/125/130/140:/180/250: Art.no. 20098177
Thanks to the flashing LEDs you are easier to see on site or in traffic. They are mounted on the rear bracket.
With the steering stop you do not need to hold the lever of the additional hydraulic function all the time when mowing/brushing/…, but the lever is fixed to the same position.
This option ensures that the pivot points of the arm are given automatic lubrication, which extends the lifespan of these components.
KM 180: Art.no. 20188202
This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system).
Folding ROPS-FOPS bar
This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system). This Rops-fops bracket can be folded in a few easy steps for driving through low passages.
The click clamp is a clamp that you can fold so you can use your Knikmops even in places with a low passage.
RM 50: Art.no. 20058105
RM 70: Art.no. 20078021
KM 80/85: Art.no. 20088203
KM 90/100: Art.no. 20098165
KM 130: Art.no. 20138171
KM 180: Art.no. 20188015
KM 250: Art.no. 20258015
Extra hydr. cooler
This cooler provides additional cooling for activities that require a constant, large hydraulic flow. (mowing, milling, …)
With this toolbox you always have your tools at hand on your Knikmops.
Thanks to these mudguard extensions your Knikmops will not get dirty as easily.
Licence plate support
A Knikmops is road-approved and can therefore be used on public roads. For this you do need
a licence plate. In order to attach it neatly to your Knikmops, we provide you with a licence plate support.
3-point lifting device
With this lifting device you can attach hydraulically powered machines to the rear of your Knikmops. This is a lifting device similar to that of a small tractor.
Fast attachment coupling
If you want to have a different quick replacement system than the standard Knikmops connector system.
With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible.
With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible. The Geco leveller can also be operated with this option.
This option enables you to switch the lifting cylinder off so the arm can move freely. This enables
an attachment such as a leveller/milling cutter to follow the ground free from the machine.
Hydr. leak line
For hydraulically powered machines that require a large hydraulic flow, a bleed line may be required to achieve lower pressure and heating from the hydraulics.
Hydr. vacuum unit
This vacuum unit is hydraulically powered by the engine of the machine so an additional petrol engine is not needed.
Custom or corporate colour
We offer you the option of having your Knikmops painted in your own corporate colour.
Hydraulic circuit coupling rear
For operating hydraulically powered devices that you can attach to the rear of your machine.
For instance a mini dumper, box scraper, …
Heating hydraulic tank + motor
This heating keeps the engine and hydraulics of the machine warm during the cold winter months. This allows for faster starting of the machine and smoother driving after starting. This option is recommended in places where the temperature is below -10°C. This option works on mains power.
With the joystick control you can operate functions such as forward/backward and the horn of your Knikmops with the joystick you use to control the jib.
This seat is more comfortable and has better suspension than the standard seat.
Electric locking differential
This function enables the lock to be activated or deactivated electrically (instead of manually).
Hydraulic boom suspension
This function makes it more enjoyable to drive the machine at higher speeds.
The tow bar enables you to move trailers around on site.
Bucket positioning rod
This option makes it easy to place the attachment (shovel bucket/levelling frame) neatly level
to the ground time and time again.
