Knikmops

Knikmops 180 TELE (KM180TE)

The Knikmops KM180TE is a multi-deployable articulated loader developed by Gebroeders Geens with sufficient power under the hood, but which is still able to reach almost a metre higher than the standard Knikmops KM180. At the maximum height of 3.31 m, this articulated loader is able to lift 610 kg. Closer to the ground that becomes 1240 kg - ideal for transporting heavy pallets or large quantities of earth.

Read more

Technical features

Download technical datasheet
Number of cylinders 3
Output of work hydraulics 50 L/min
Lifting force 1240 kg
Lifting force (0.5m in front of the wheel) 1150 kg
Power 43 HP / 32 kw
Kerbweight without attachment 2200 kg
Topspeed 20 km/h
Diesel engine type (Yanmar) 3TNV86CT
Fueltank capacity 45 L
Pressure of work hydraulics 180 bar
Breakout force 940 kg
Weight 2200 kg

Lifting capacity

1 2 3
1240/880 kg 1150/710 kg 820/610 kg
Gebroeders Geens kniklader Knikmops Gebroeders Geens kniklader Knikmops
Gebroeders Geens kniklader Knikmops
Gebroeders Geens kniklader Knikmops

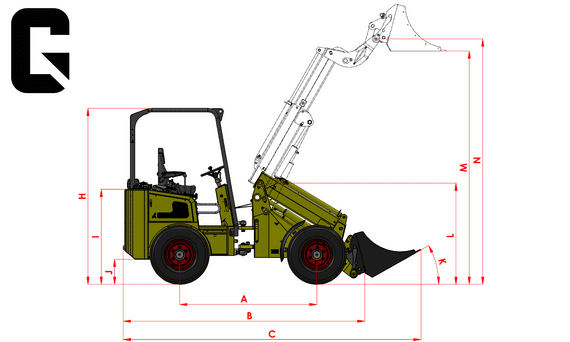

Machine dimensions

A 1850 mm Wheelbase
B 3240 mm Chassis length
C 4075 mm Total length with shovel bucket
D 1135/1400 mm Overall width
E 1400/1500 mm Shovel bucket width (standard)
F 50 ° Maximum turning angle
G 2760 mm Turning radius outside edge
H 2380 mm Rollbar height
I 1340 mm Seat height
J 335 mm Ground clearance
K 30 ° Tipping-in angle from ground surface
L 1365 mm Arm hinge height
M 2490/3140 mm Transfer height
N 2660/3310 mm Shovel bucket rotation point, maximum

Description

This articulated loader is about 1.4 m wide as standard. In addition, a Knikmops operator can rely on a power of 32.4 kW or 43 hp when using this multifunctional articulated loader. Together with its working hydraulics with a throughput of 50 l/min and a maximum pressure of 180 bar, this gives you a machine that can carry and operate a nearly infinite number of attachments. Examples are a hedge trimmer, a concrete transportation bucket, or a tree clamp. In addition it has a continuous 4-wheel drive thanks to four separate hydromotors on the wheels. This drive is controllable with a difflock or can be - optionally - switched electrically. This Knikmops with easy steering is a perfect asset at a construction site or in a garden.

The Knikmops KM 180 TE was recently renewed completely in order to comply with the latest emission norms. In light of this, a particulate filter was added to the chassis, and the Knikmops was given a user-friendly dashboard. The Knikmops KM180TE is designed for the regeneration of the particulate filter to occur during the work, so the Knikmops operator only needs to be informed of irregularities. This is done via the easy digital dashboard. So even with the latest technical innovations, this Knikmops is still easy and fast to work with for anyone. The core Knikmops values are therefore preserved with ease. Compact, multifunctional and durable. The compact steel chassis is robust and was developed for demanding jobs. This allows workers to receive true support from a helper like this Knikmops. Ideal for gardening contractors with a diverse daily schedule.

The cab of every telescopic Knikmops comes with a four-point roof to prevent the operator from ending up underneath their own load. A folding four-point roof can be installed for end users who need a lower cab height on specific jobs.

Every telescopic Knikmops is equipped with a joystick to operate the arm and the selected attachment.

Knikmops KM180TE Geens kniklader Knikmops KM180TE Geens kniklader Knikmops KM180TE Geens kniklader Knikmops KM180TE Geens kniklader Knikmops KM180TE Geens kniklader Knikmops KM180TE Geens kniklader

Extra options

Product option Knikmops-Road lighting
Road lighting

We offer you this option for safe driving on roads. The option comprises 2 headlights and tail lights with parking light, dipped headlight and turn lights.
KM 90/100/120/125/130/140: Art.no. 20137210
KM 180/250: Art.no. 20257210

Product option Knikmops-Work lighting
Work lighting

This option is ideal to enable work to continue even at dusk or at night. The option comprises 2 front and 1 rear working lights.

Product option Knikmops-Cab
Cab

The cab is ideal for working in bad weather conditions. The cab is equipped with working lights, front and rear wipers (and possibly heating).
KM 130: Art.no. 20138200
KM 180: Art.no. 20188300
KM 250: Art.no. 20258200

Product option Knikmops-Tyres
Tyres

We offer a range of different tyres so you can choose the perfect tyre for your work.

Ground weight

The ground weight gives your greater stability and traction during your work.

Product option Knikmops-Hand throttle
Hand throttle

The hand throttle ensures a higher engine speed regardless of driving speed. This enables equipment to be driven that need greater hydraulic throughput at low driving speeds. Such as a mower, milling cutter, brush, …

Beacon

The revolving light is ideal for ensuring that you are easy to see in traffic or on site. It is mounted on the rear bracket.
KM 80/85/90/100/120/125/130/140: Art.no. 20097978
KM 80/85/90/100/120/125/130/140:/180/250: Art.no. 20098177

Flashing LEDs

Thanks to the flashing LEDs you are easier to see on site or in traffic. They are mounted on the rear bracket.

Product option Knikmops-Fixed stop
Fixed stop

With the steering stop you do not need to hold the lever of the additional hydraulic function all the time when mowing/brushing/…, but the lever is fixed to the same position.

Central lubrication

This option ensures that the pivot points of the arm are given automatic lubrication, which extends the lifespan of these components.
KM 180: Art.no. 20188202

ROPS-FOBS bar

This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system).

Folding ROPS-FOPS bar

This bracket protects the machine from rolling over (Rolling over protection system) and from falling objects (Falling objects protection system). This Rops-fops bracket can be folded in a few easy steps for driving through low passages.

Product option Knikmops-Click clamp
Click clamp

The click clamp is a clamp that you can fold so you can use your Knikmops even in places with a low passage.
RM 50: Art.no. 20058105
RM 70: Art.no. 20078021
KM 80/85: Art.no. 20088203
KM 90/100: Art.no. 20098165
KM 130: Art.no. 20138171
KM 180: Art.no. 20188015
KM 250: Art.no. 20258015

Extra hydr. cooler

This cooler provides additional cooling for activities that require a constant, large hydraulic flow. (mowing, milling, …)

Toolbox

With this toolbox you always have your tools at hand on your Knikmops.

Product option Knikmops-Mudguard extensions
Mudguard extensions

Thanks to these mudguard extensions your Knikmops will not get dirty as easily.

Licence plate support

A Knikmops is road-approved and can therefore be used on public roads. For this you do need
a licence plate. In order to attach it neatly to your Knikmops, we provide you with a licence plate support.

3-point lifting device

With this lifting device you can attach hydraulically powered machines to the rear of your Knikmops. This is a lifting device similar to that of a small tractor.

Product option Knikmops-Fast attachment coupling
Fast attachment coupling

If you want to have a different quick replacement system than the standard Knikmops connector system.

HyF control

With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible.

HyE control

With this option you can operate several hydraulic functions simultaneously. Operating the additional function with the joystick is also possible. The Geco leveller can also be operated with this option.

Floating boom

This option enables you to switch the lifting cylinder off so the arm can move freely. This enables
an attachment such as a leveller/milling cutter to follow the ground free from the machine.

Hydr. leak line

For hydraulically powered machines that require a large hydraulic flow, a bleed line may be required to achieve lower pressure and heating from the hydraulics.

Hydr. vacuum unit

This vacuum unit is hydraulically powered by the engine of the machine so an additional petrol engine is not needed.

Product option Knikmops-Custom or corporate colour
Custom or corporate colour

We offer you the option of having your Knikmops painted in your own corporate colour.

Hydraulic circuit coupling rear

For operating hydraulically powered devices that you can attach to the rear of your machine.
For instance a mini dumper, box scraper, …

Heating hydraulic tank + motor

This heating keeps the engine and hydraulics of the machine warm during the cold winter months. This allows for faster starting of the machine and smoother driving after starting. This option is recommended in places where the temperature is below -10°C. This option works on mains power.

Electric locking differential

This function enables the lock to be activated or deactivated electrically (instead of manually).

Hydraulic boom suspension

This function makes it more enjoyable to drive the machine at higher speeds.

Product option Knikmops-Towbar
Towbar

The tow bar enables you to move trailers around on site.

Bucket positioning rod

This option makes it easy to place the attachment (shovel bucket/levelling frame) neatly level
to the ground time and time again.
